Meizhou Weiyou Wear Resisting Material Co., Ltd. People oriented, scientific and technological innovation, cultivate talents and seek common development.
5 Years
| Ask Lasest Price | |
| Brand Name : | Weiyou |
| Model Number : | EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5; |
| Price : | dollar 1000~1100 piece |
| Payment Terms : | T/T,Master card,Alipay...etc. |
| Supply Ability : | 10 piece,1 day |
| Delivery Time : | 5-8 work days |
Excavator Hydraulic Gearbox Ex200-3 Ex200lc-3 Ex200h-3 Ex200lc-5 E Spare Parts 9155253/9149087/9132405/9131678,
Final Drive Gearbox EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5; Travel Reduction Gearbox 9155253/9149087/9132405/9131678
We pack them in plywood boxes and ship them to all parts of the world by sea, air or carrier. The part number of the EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5; travel gearbox is 9155253/9149087/9132405/9131678,. You can communicate with us if you want to customize colors.
| Product Name: | Weiyou Parts EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5;Travel Reduction Device Travel Gearbox |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Place of Origin: | Guangdong, China |
| Gearing Arrangement: | Planetary |
| Application: | Excavator |
| Machine model: | EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5; |
| Part Number: | 9155253/9149087/9132405/9131678 |
| Compatible Brand: | Hitachi, Other |
| Warranty: | 6 months |
| Packing: | Wooden Case |
| MOQ: | 1 Piece |
| Quality: | High-Quality |
| Customized support: | OEM |
| Brand Name: | Weiyou |
| Product name: | Excavator Travel reducer gearbox |
| Payment: | T/T, Alipay...etc. |
| Delivery time: | 3 days since getting the payment,not the customized item. |

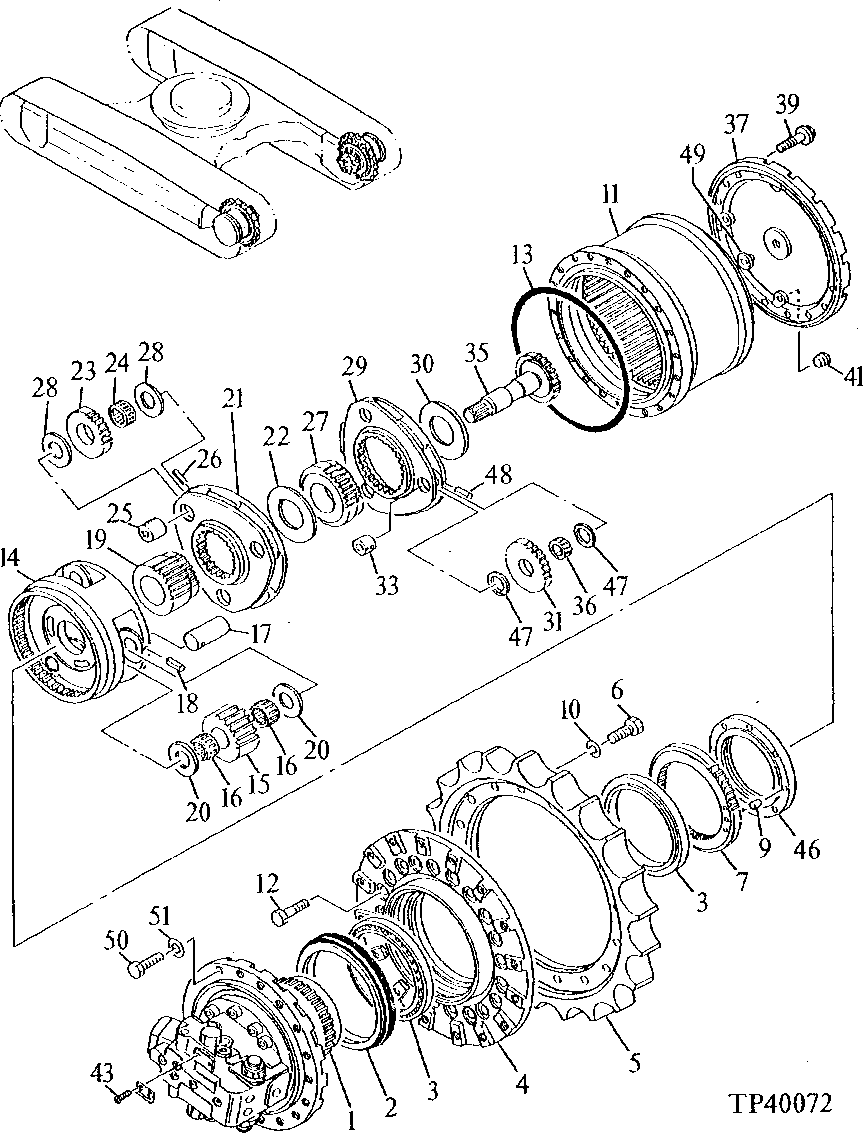

Final Drive Gearbox EX200-3; EX200LC-3; EX200H-3; EX200LC-5; EX200LCH-3; EX200-5; EX210H-5; EX210LCH-5; PICTURES:
We can provide other parts:
| Parts on group PROPEL DRIVE: | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 9116838EX | [1] | Hydraulic Motor Reman | SUB FOR AT217336, REMAN FOR 9116838 AND AT159502 |
| 1 | 9131678 | [1] | Hydraulic Motor | SUB FOR AT202483 OR AT217337 |
| 1 | 9131678EX | [1] | Hydraulic Motor Reman | SUB FOR AT202483 OR AT217337, REMAN FOR 9131678 |
| 2 | FYB00000549 | [1] | Seal | SUB FOR AT154697 OR 4634693 |
| 3 | AT130941 | [2] | Tapered Roller Bearing | |
| 4 | 1013983 | [1] | Drum | SUB FOR AT154627 |
| 5 | AT311805 | [1] | Drive Sprocket | SUB FOR TH109726 OR 1010203 |
| 6 | 19M8002 | [16] | Cap Screw | M20 X 55 |
| 7 | 3047448 | [1] | Hub | SUB FOR AT154662 |
| 9 | 4246783 | [1] | Pin | SUB FOR AT154708 |
| 10 | 12M7070 | [16] | Lock Washer | 20 MM |
| 11 | 1014493 | [1] | Ring Gear | SUB FOR AT154634 |
| 12 | 19M7369 | [20] | Cap Screw | M16 X 60 |
| 13 | 4246792 | [1] | O-Ring | 342.100 X 3.100 MM SUB FOR AT154711 |
| 14 | 1014491 | [1] | Planet Pinion Carrier | SUB FOR AT154632 |
| 15 | AT318028 | [3] | Gear | SUB FOR 3052346 OR AT154686 |
| 16 | 4172394 | [6] | Needle Bearing | SUB FOR AT154701 |
| 17 | 4252442 | [3] | Pin | SUB FOR AT154721 |
| 18 | 34M7133 | [3] | Spring Pin | 8 X 70 MM |
| 19 | 3049870 | [1] | Sun Gear | SUB FOR AT154668 |
| 20 | 4271698 | [6] | Shim | SUB FOR AT154777 |
| 21 | 1014492 | [1] | Planet Pinion Carrier | SUB FOR AT154633 |
| 22 | 4246785 | [1] | Washer | SUB FOR AT154710 |
| 23 | 3052345 | [3] | Gear | SUB FOR AT154685 |
| 24 | 4354271 | [3] | Needle Bearing | SUB FOR AT130375 OR AT214453 |
| 25 | 4252441 | [3] | Spacer | SUB FOR AT154720 |
| 26 | 34M7119 | [3] | Spring Pin | 5 X 65 MM |
| 27 | 3049872 | [1] | Sun Gear | SUB FOR AT154669 |
| 28 | 4269295 | [6] | Shim | SUB FOR AT154773 |
| 29 | 1014490 | [1] | Planet Pinion Carrier | SUB FOR AT154631 |
| 30 | 4401293 | [1] | Spacer | SUB FOR TH111249 |
| 31 | 3049873 | [3] | Gear | SUB FOR AT154670 |
| 33 | 4210853 | [3] | Spacer | SUB FOR AT154702 |
| 35 | 2028764 | [1] | Shaft | SUB FOR AT154653 |
| 36 | AT127994 | [3] | Needle Bearing | |
| 37 | 2028763 | [1] | Cover | SUB FOR AT154652 |
| 39 | 19M8011 | [16] | Cap Screw | M12 X 30 |
| 41 | 94-2013 | [3] | Fitting Plug | SUB FOR TH100648 |
| 43 | 37H99 | [2] | Screw | 0.100" X 1/4" |
| 46 | 3057125 | [1] | Ring | SUB FOR AT154694 |
| 47 | 4192910 | [6] | Plate | SUB FOR TH108847 |
| 48 | 4173093 | [3] | Spring Pin | SUB FOR TH108841 |
| 49 | 4478346 | [1] | Pin | SUB FOR 4285323 OR AT154798 |
| 50 | TH111692 | [28] | Cap Screw | SUB FOR AT154757 OR 4258061 |
| 51 | N231749 | [28] | Washer | 20.620 X 38.100 X 6.350 MM |
WHY US:
We have high market share in Oversea market and Domestic market, Southeast Asia 60%, Russia 10%, Middle East 8%, North and South America 10%,Europe 8%, others 4%.
Strength background | We are the manufacturer and own 20000 ㎡ factory areas, good relationship with material suppliers, which make more competitive price and steady quality. |
Technical support | We have 16 senior engineers and more than 120 sets of advanced production equipment, with more than 30 years of design and processing experience. |
Good service attitude | Our sales term offer the efficient service for every customers. No matter the size of the trade, as long as the customer orders, our sales staff will provide efficient service. |
| Support customized requirements | We develop spare parts for old and new excavator models, and submit our latest products to customers every month so that to meet the market demand. |
FAQ
Q1 What is your terms of payment?
A: T/T, Paypal
Q2. What is your terms of delivery?
A:Sea ,Air ,Express
Q3. How about your delivery time?
A: Generally, it will take within 25 hours after receiving your
advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
|
|
